Z-Wave AC Infrared Module Airconditioner (AC) IR Extender Smart Home Automation

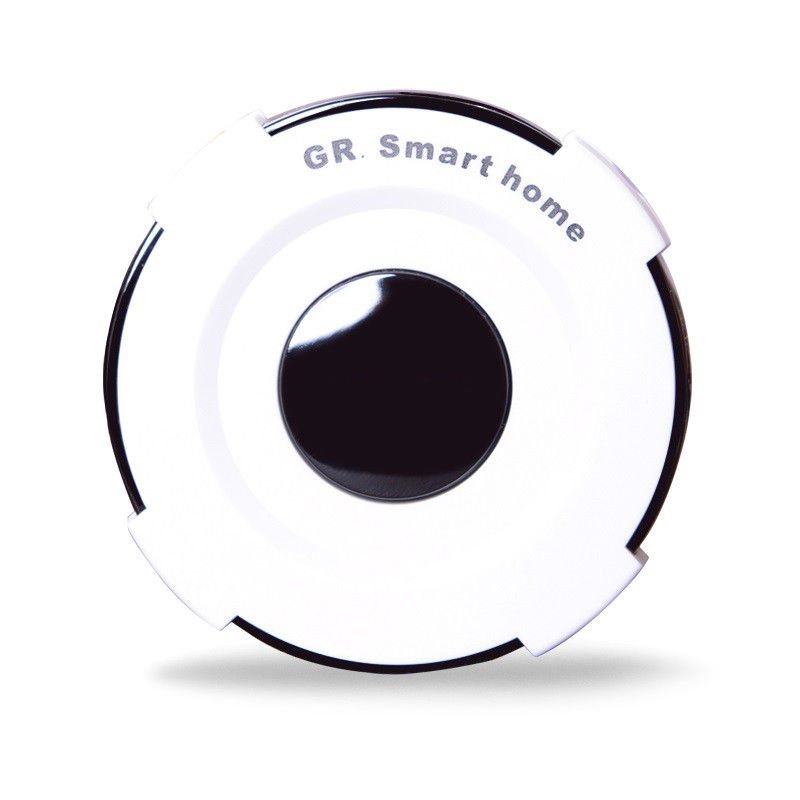

The GR-103 is a Z-Wave to air-conditioner (AC) IR Extender and it works with any Z-Wave compliant gateway or portable controller by translating Z-Wave’s Thermostat commands to AC IR control code. User can set the IR code from the built-in code library of GR-103 through the configuration commands, or use the learning function of GR-103 through the UI on gateway. GR-103 also builtin a temperature sensor that allow to report your room temperature to home gateway. It can be utilized to control or monitor your room temperature by your smart phone or PC while you are at office, home anywhere or around the world.

Built-in IR code library

The built-in IR code library enables the GR-103 to work with any Z-Wave compliant gateway and controller. Gateway and controller will not need to have any knowledge related to IR control code. It also eliminates the needs of complicated set up

procedures and proprietary Z-Wave commands to configure the system.The IR code

library supports various brand name air conditioners found in the today’s market. User

can use his controller or gateway to send a 3 digits AC IR code number (include the

brand selection) using standard Z-Wave configuration command.
